louver cap

Louver cap shipped loose

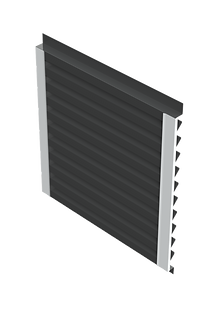

louver

LOUVERS

MWI'S

LOUVERS

Color Options & Features

  • We offer a large color palette designed to match most roll-former metal panels.

  • Over 100 colors are available to suit your specific needs.

  • All metal edges are hemmed for added strength and easier handling.



Louver Features

  • Louvers include an approximately 1.5" nailing flange on all four sides for secure installation.

  • Constructed from high-quality 29-gauge pre-painted steel, complete with bird screen for added protection.

  • Louver size corresponds to the actual rough opening size for a precise fit.

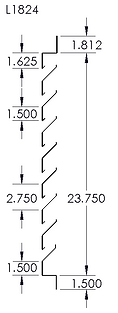

L1824

18"x24" steel louver

90 sq. inches of free area

4 lbs. each/8 lbs. carton

L2424

24"x24" steel louver

126 sq. inches of free area

7 lbs. each/14 lbs. carton

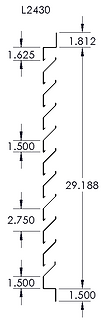

L2430

24"x30" steel louver

157 sq. inches of free area

8 lbs. each/16 lbs. carton

L3030

30"x30" steel louver

202 sq. inches of free area

9 lbs. each/18 lbs. carton
